DY-1613

High-performance dynamic FPD with a-Si TFT sensor paired with advanced Perovskite scintillator.

DY-1613 will achieve High Image Quality with High Frame Rate, Low Lag & Ghost and High Dynamic Range while significantlyreducing Radiation Dose. High standard product design provides high Reliability and Environmental Adaptability. Tiray will provides SDK for development support, which is convenient for users to configure parameters and integrate components, providing full support for the application of DY-1613 in the field of Dental CBCT and industrial NDT.

/

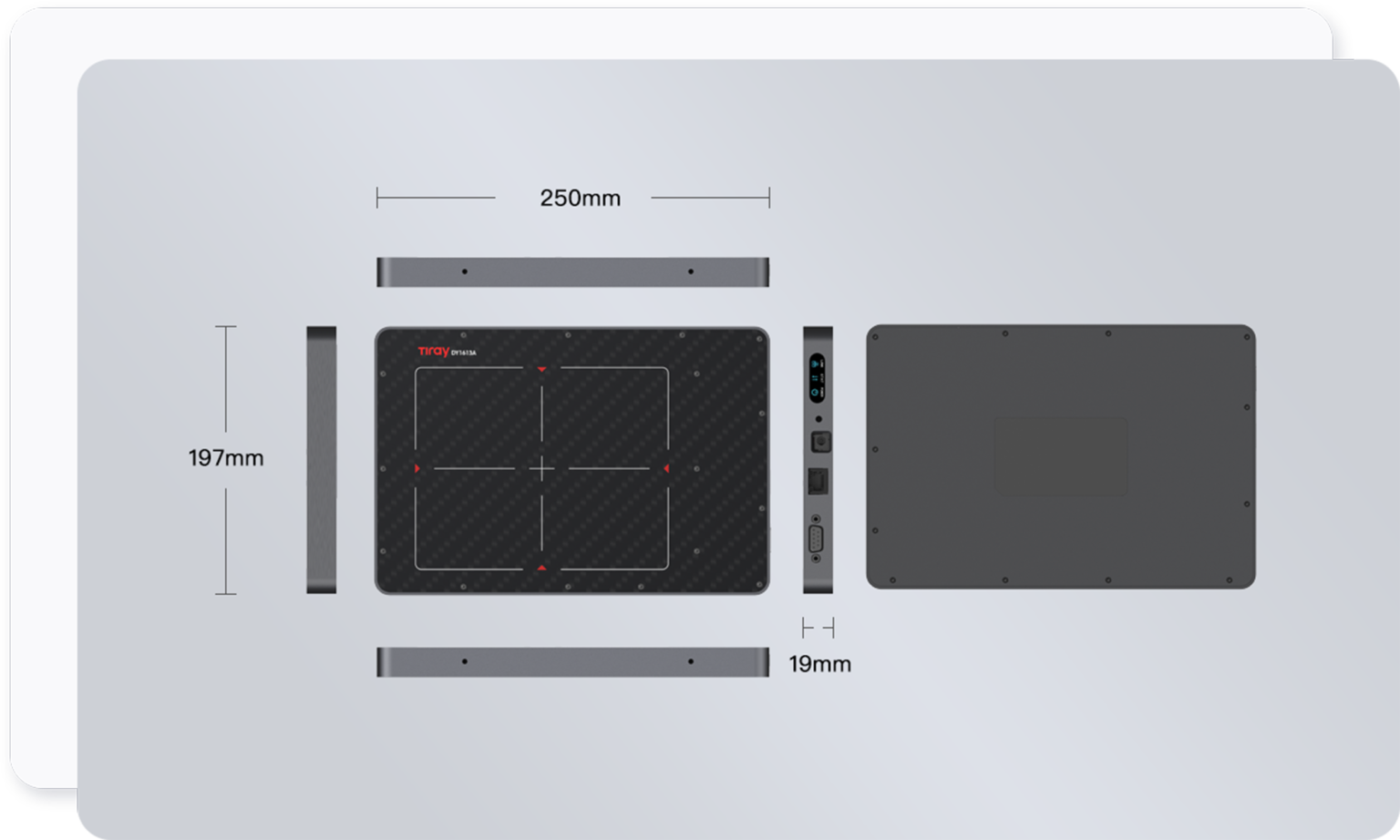

Product Dimensions
/
Grid Image

a-Si

Sensor Type

Grid Image

Gigabit

Data Interface

Grid Image

Perovskite/CsI

Scintillator Type

Grid Image

125um

Pixel Size

Grid Image

1.5kg

Weight

Grid Image

1280*1024

Pixel Matrix

Grid Image

160*130 mm

Imaging Area

Grid Image

16bit

AD Conversion

Grid Image

4.0LP/mm

Spatial Resolution

Grid Image

30fps (bining 1*1) 60fps (bining 2*2)

Frame Rate

-
